The material parameter is as following:
High Carbon steel Parameter:
| NO | Grade | Chemical Composition | Strength Property | ||
| C | Si | Mn | σb(MPa) | ||
| 1 | 30Mn | 0.27-0.34% | 0.17-0.37% | 0.70-1.00% | 540 |
| 2 | 45 | 0.42-0.50% | 0.17-0.37% | 0.50-0.80% | 600 |
| 3 | 50 | 0.47-0.55% | 0.17-0.37% | 0.50-0.80% | 630 |
| 4 | 55 | 0.52-0.60% | 0.17-0.37% | 0.50-0.80% | 645 |
| 5 | 60 | 0.57-0.65% | 0.17-0.37% | 0.50-0.80% | 675 |
| 6 | 65 | 0.62-0.70% | 0.17-0.37% | 0.50-0.80% | 695 |
| 7 | 70 | 0.67-0.75% | 0.17-0.37% | 0.50-0.80% | 715 |
| 8 | 65Mn | 0.62-0.70% | 0.17-0.37% | 0.90-1.20% | 980 |
| 9 | 72A | 0.69-0.76% | 0.15-0.35% | 0.30-0.60% | 1570 |
Stainless Steel Parameter:
| NO | Grade | Chemical Composition | Strength Property | |||
| C | Ni | Mn | Cr | σb(MPa) | ||
| 1 | 202 | ≤0.15% | 4.0-6.0% | ≤7.5% | 17.0-19.0 | 520 |
| 2 | 304 | ≤0.08% | 8.0-10.5% | ≤2.0% | 18.0-20.0 | 520 |
| 3 | 321 | ≤0.08% | 9.0-12.0% | ≤2.0% | 17.0-19.0 | 520 |
| 4 | 316 | ≤0.08% | 10.0-14.0% | ≤2.0% | 16.0-18.5 | 520 |

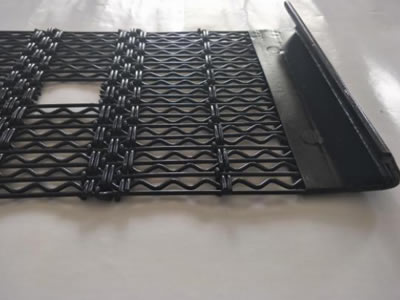

For the weaving self clean vibrating screen mesh, there are different weaving types.
Characteristics:
It can offer effective solutions to difficult sizing and aggregate separation conditions.
Self-cleaning ability and less maintenance
Reduce blinding and plugging
Wear and abrasion resistance
Producing tighter specifications and having the ability to self-clean.
Application:
sand and gravel industry,
ore preparation plants,
mining industry
For damp, sticky, hard-to-screen material
