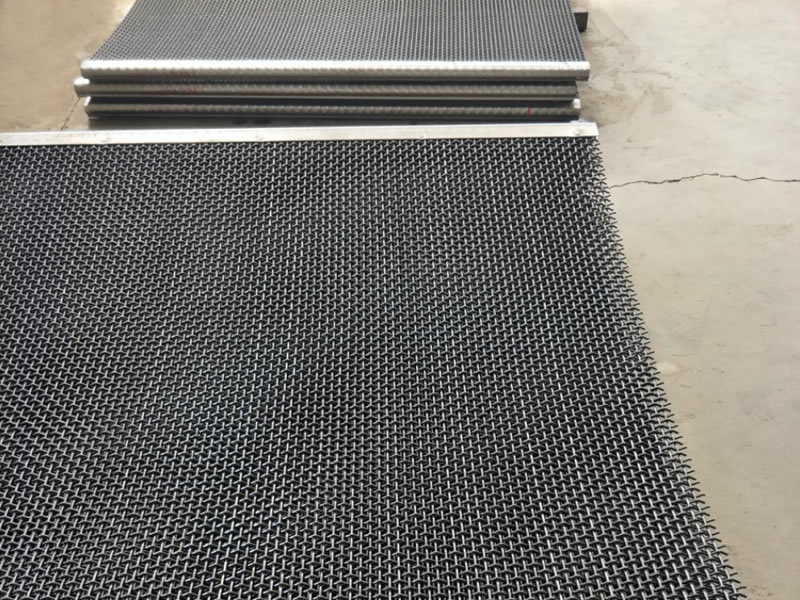

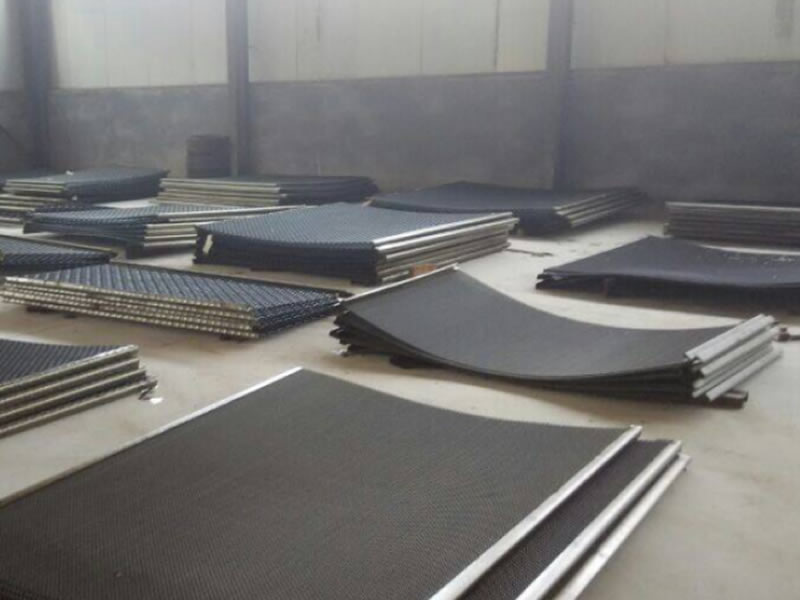

Crusher Screen Mesh

Crusher screen mesh Material: according to different applications of coal,gravel,gabbro aggregate,slag,stone choose, crusher screen mesh material different.

The material parameter is as following:
High Carbon steel Parameter:


NO
Grade Chemical Composition Strength Property
C Si Mn σb (MPa)
1 30Mn 0.27-0.34% 0.17-0.37% 0.70-1.00% 540
2 45 0.42-0.50% 0.17-0.37% 0.50-0.80% 600
3 50 0.47-0.55% 0.17-0.37% 0.50-0.80% 630
4 55 0.52-0.60% 0.17-0.37% 0.50-0.80% 645
5 60 0.57-0.65% 0.17-0.37% 0.50-0.80% 675
6 65 0.62-0.70% 0.17-0.37% 0.50-0.80% 695
7 70 0.67-0.75% 0.17-0.37% 0.50-0.80% 715
8 65Mn 0.62-0.70% 0.17-0.37% 0.90-1.20% 980
9 72A 0.69-0.76% 0.15-0.35% 0.30-0.60% 1570

Stainless Steel Parameter:

NO Grade Chemical Composition Strength Property
C Ni Mn Cr σb (MPa)
1 202 ≤0.15% 4.0-6.0% ≤7.5% 17.0-19.0 520
2 304 ≤0.08% 8.0-10.5% ≤2.0% 18.0-20.0 520
3 321 ≤0.08% 9.0-12.0% ≤2.0% 17.0-19.0 520
4 316 ≤0.08% 10.0-14.0% ≤2.0% 16.0-18.5 520

Crusher Screen Mesh Weaving type:

Crusher Screen Mesh Specifications:

Hole size (mm) Light Types Middle Types Heavy types
Wire diameter (mm) Opening Rate % Wire diameter (mm) Opening Rate % Wire diameter (mm) Opening Rate %
125.0    — 10.00 86 12.5 83
112.0    — 10.00 84 12.5 81
100.0    — 10.00 83 12.5 79
90.0    — 10.00 81 12.5 77
80.0    — 10.00 79 12.5 75
71.0    — 10.00 77 12.5 72
63.0 8.00 79 10.00 74 12.5 70
56.0 8.00 77 10.00 72 12.5 67
50.0 6.50 79 8.00 74 10.00 69
45.0 6.50 77 8.00 72 10.00 67
40.0 6.50 75 8.00 69 10.00 64
36.0 5.00 77 6.50 72 8.00 67
32.0 5.00 75 6.50 70 8.00 64
28.0 5.00 72 6.50 67 8.00 60
25.0 5.00 69 6.50 64 8.00 57
22.0 4.00 72 5.00 66 6.30 60
20.0 4.00 69 5.00 64 6.30 58
18.0 4.00 67 5.00 61 6.30 55
16.0 3.00 70 4.00 64 5.00 58
14.0 3.00 67 4.00 60 5.00 54
13.0 3.00 65 4.00 58 5.00 52
11.0 2.50 67 3.00 61 4.00 54
10.0 2.50 64 3.00 58 4.00 51
9.0 2.50 61 3.00 55 4.00 48
8.0 2.00 64 2.50 58 3.00 51
7.0 2.00 61 2.50 55 3.00 48
6.0 2.00 56 2.50 50 3.00 43
5.0 2.00 54 2.50 44 3.00 38
4.5 1.80 51 2.20 45 2.50 41
4.0 1.60 51 2.00 44 2.20 41
3.0 1.20 50 1.50 40 2.00 38
2.0 0.80 50 1.20 41 1.50 40
PS: Other hole size and wire diameter to match, clients can require.

Plain Hooked Edge
Without  Reinforcing, Edges are annealed before forming to eliminate cracking and breakage. Technical data R≥6, a=60°, H≥35mm, wire diameter common above 6mm to choose this edge.

Inside Reinforced Formed Edge
This hook edge type is utilized for screen mesh wire diameter 4mm or less than 6mm.  Technical data:  a=60°, H=25mm,L=25mm.

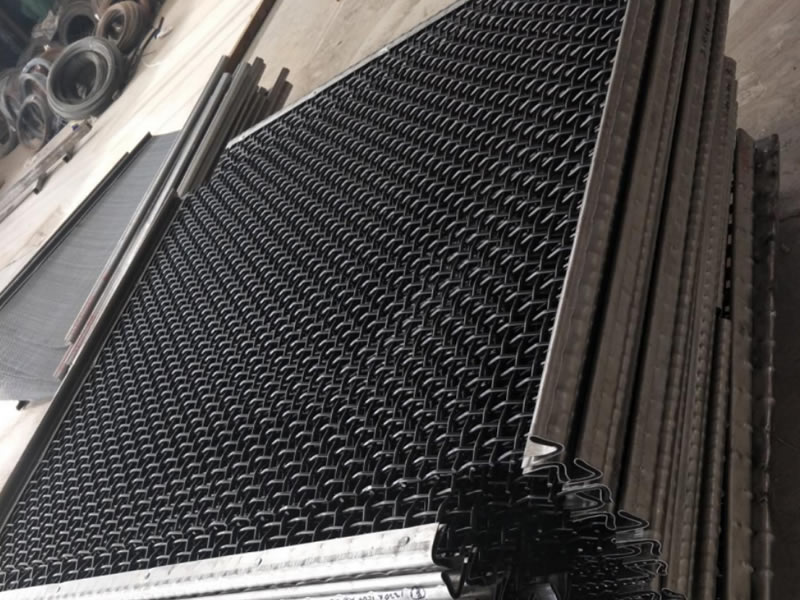

Reinforced Shroud Banded Edge

Provided as standard on screens up to 6.0mm wire diameter. Standard shrouding is 16 gauge with other thickness' available on request. Technical data: a=45°or 60°. plate thickness can be required.


End Tension Reinforced Shroud Banded Edge
Specially reinforced to prevent pull-out under extreme screen tensioning. Also available in Double Reinforced Style. Plate thickness can be required.

Application:the crusher screen mesh use for coal, gravel, gabbro aggregate, slag, stone sieve.

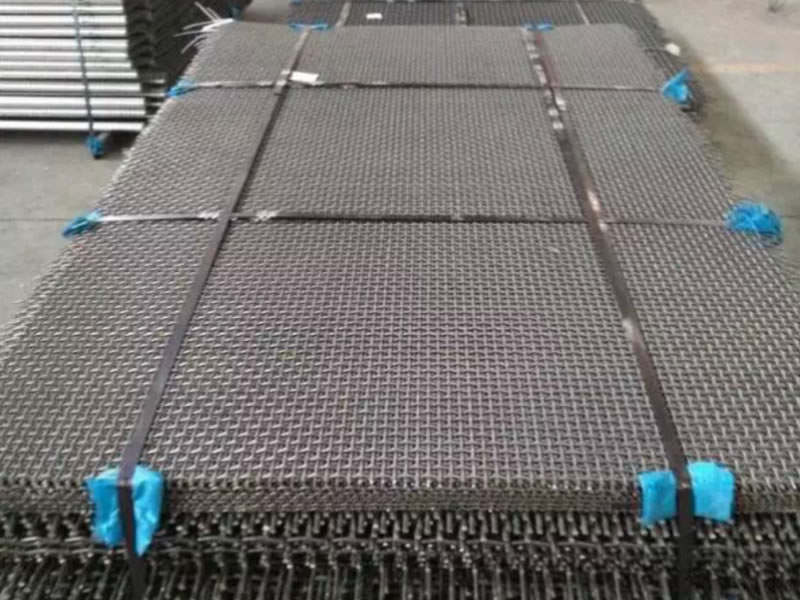

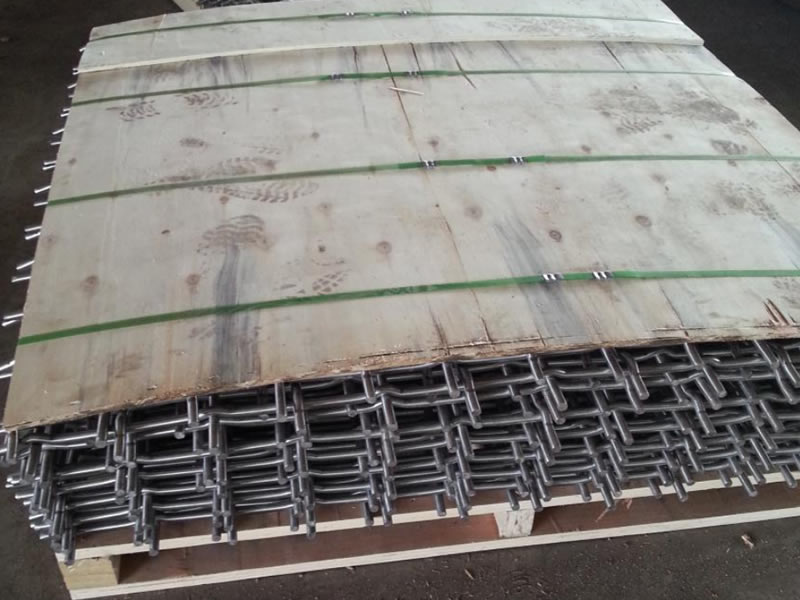

Packing
